By application7 products · 1 production lines
Carbon materials
Dispersion of carbon nanotubes, graphene and carbon black into conductive pastes and composite slurries.
Equipment
Mills for carbon materials.
Each field lists the mills and lines whose product pages name it as an application; general-purpose mills appear in more than one field.

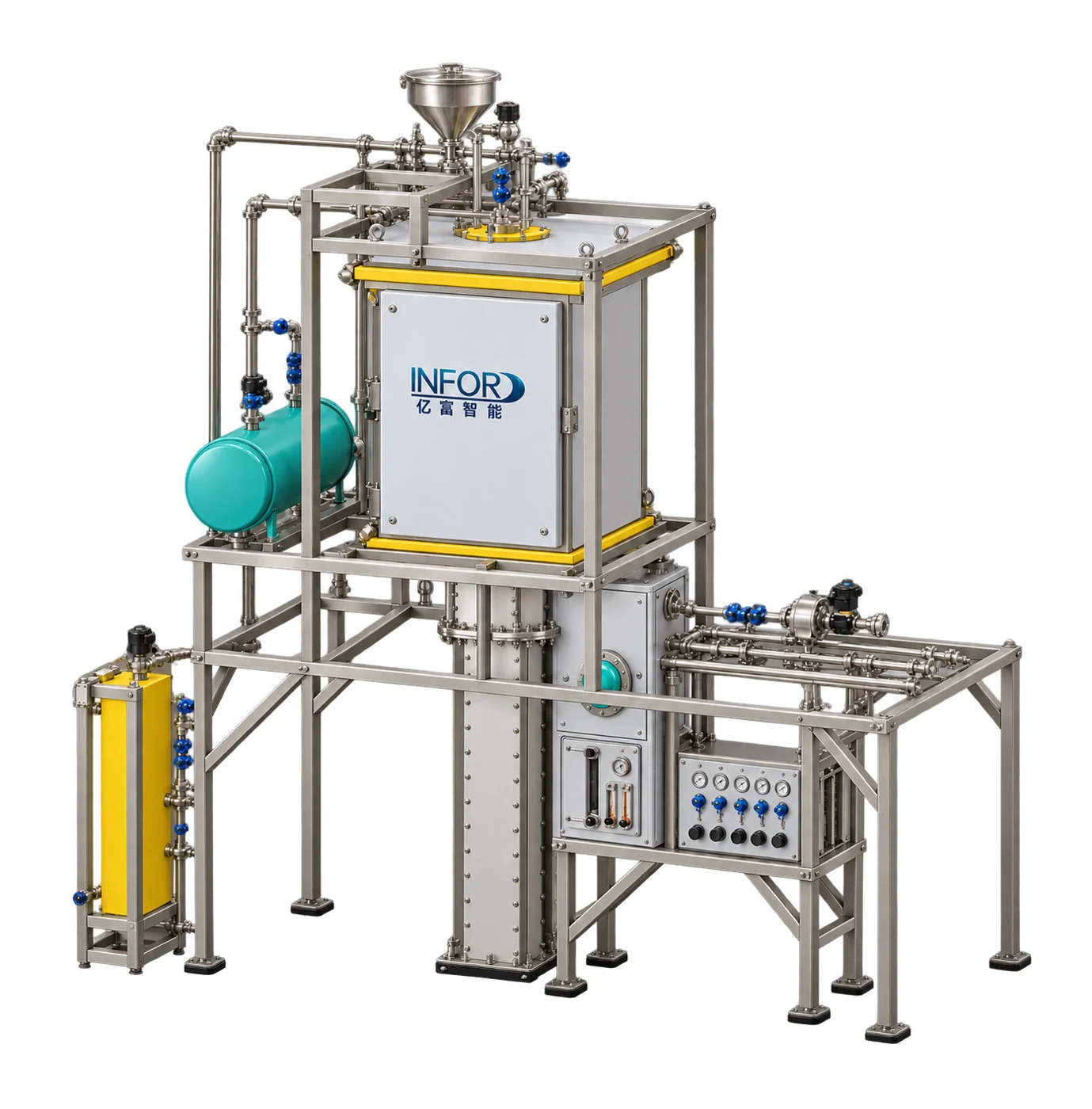

CVD · SWCNTSingle-Wall Carbon Nanotube CVD Growth SystemVertical CVD furnace for single-wall carbon nanotube (SWCNT) synthesis: silicon carbide tube up to Φ200 mm, three heating zones to 1300 °C and continuous collection.- Max. temperature
- 1300 °C
- Furnace tube
- Φ170-200 mm
- Models
- 2

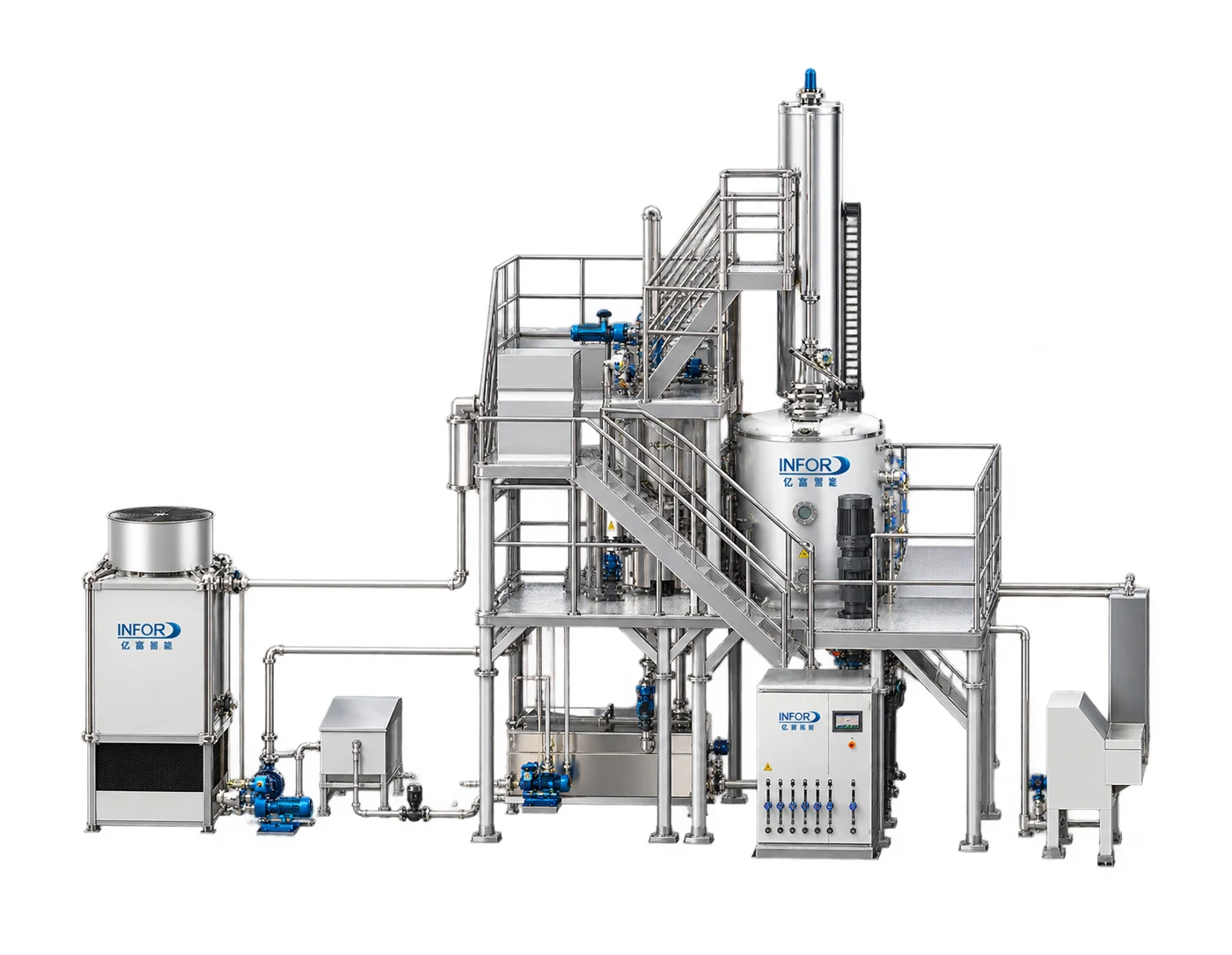

Plasma Arc · SWCNTPlasma DC Arc Furnace for Single-Wall Carbon NanotubesHigh-frequency DC plasma arc furnace reaching 5000-7000 °C for floating-catalyst growth of carbon nanotubes, with water-cooled vacuum chamber and automatic discharge.- Arc temperature
- 5000-7000 °C
- Total power
- ~220 kW
- CNT Conductive PasteCarbon Nanotube Conductive Paste Bead Mill SeriesSpecialized sand mills for carbon nanotube slurry with corrosion-proof stainless structure, high flow and anti-explosion treatment.
- Models
- 4

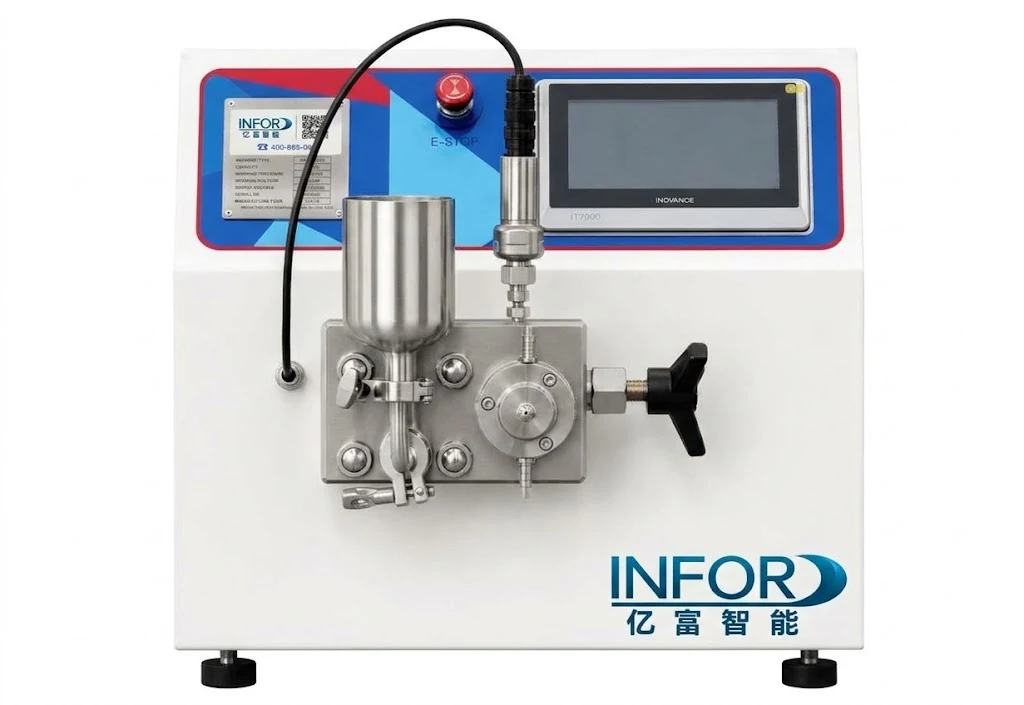

Laboratory · High-PressureLaboratory High-Pressure Homogenizer SeriesBench-top high-pressure homogenizers with up to 2000 bar design pressure, for nano dispersion, emulsification and cell disruption from 20 ml samples.- Design pressure
- up to 2000 bar
- Working pressure
- 0-1500 bar
- Models
- 4

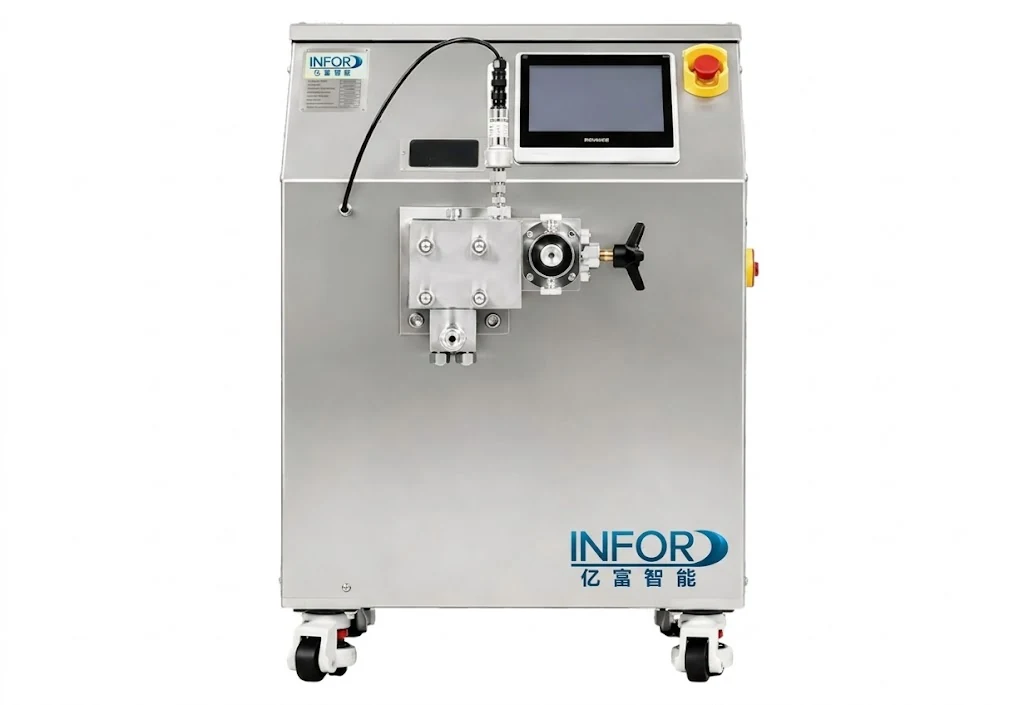

Pilot · High-PressurePilot High-Pressure Homogenizer SeriesPilot-scale high-pressure homogenizers from 20 to 300 L/h, bridging laboratory trials and volume production.- Flow
- 20-300 L/h
- Max. working pressure
- up to 1500 bar
- Models
- 5

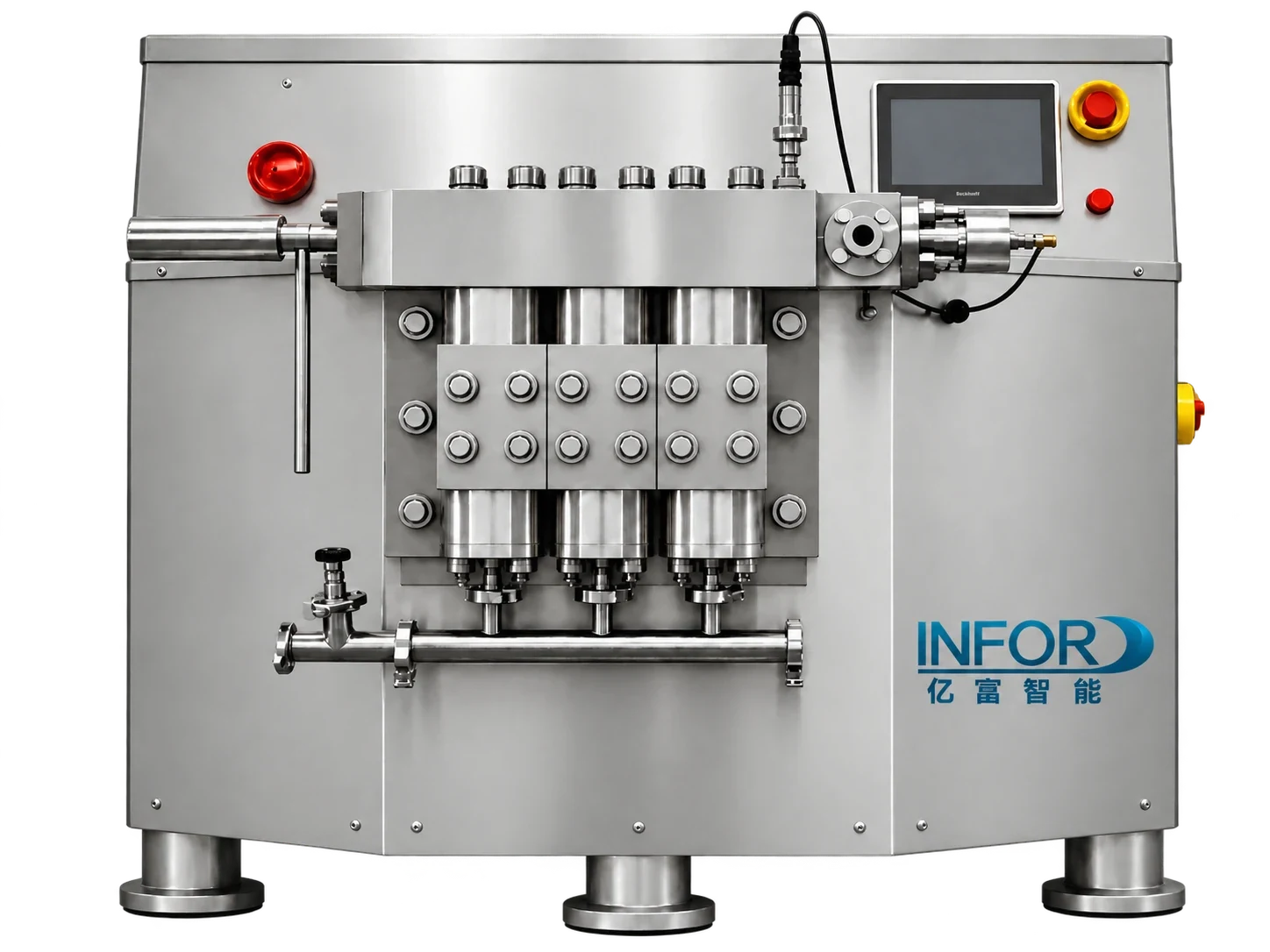

Production · High-PressureIndustrial High-Pressure Homogenizer SeriesProduction high-pressure homogenizers from 250 to 4000 L/h at 1000-1500 bar, built for continuous industrial duty.- Flow
- 250-4000 L/h
- Max. working pressure
- 1000-1500 bar
- Models
- 10

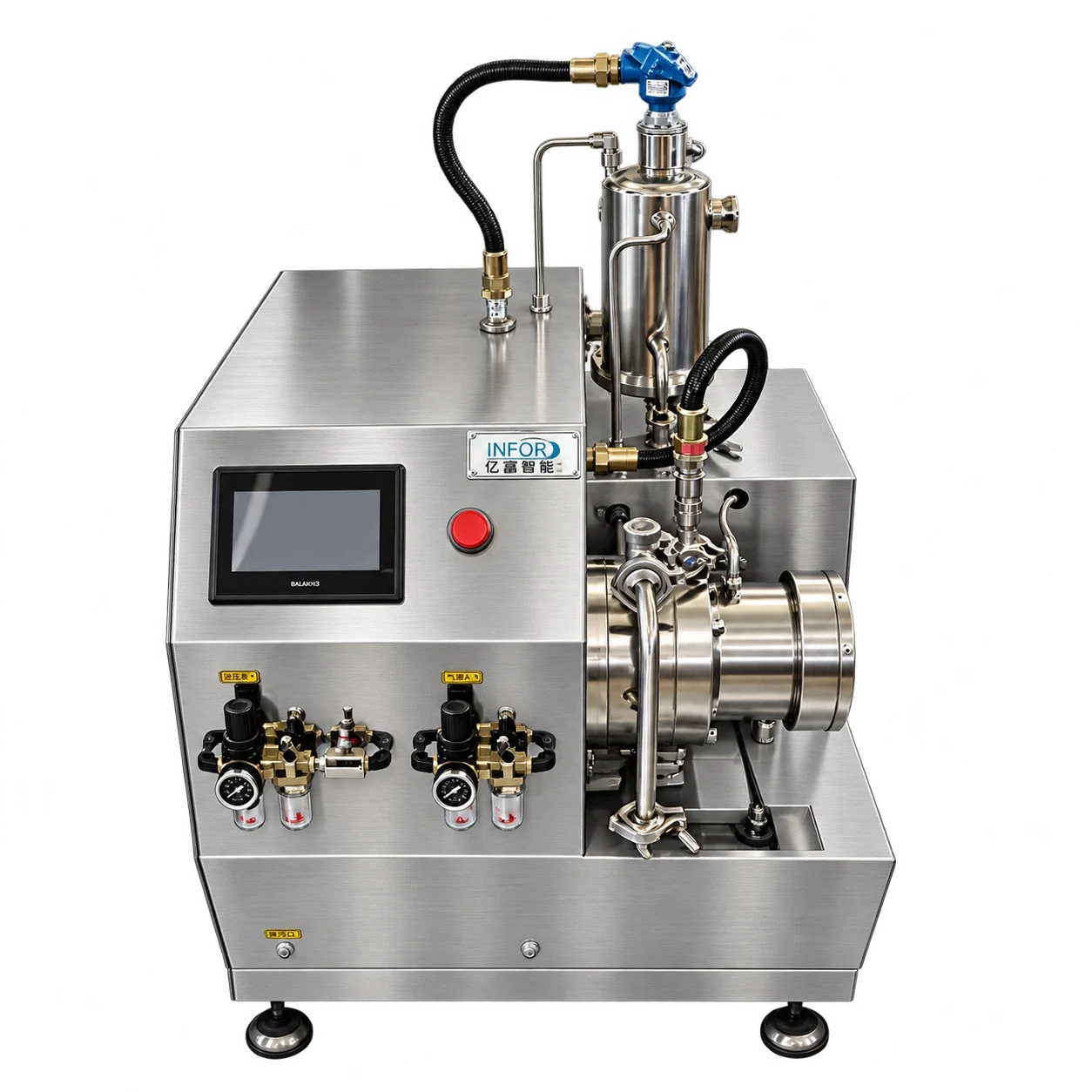

Laboratory · HorizontalExperimental Horizontal Bead MillCompact horizontal sand mill for extremely small batches and rapid nano wet-grinding trials in the laboratory.- Grinding fineness
- 100-1500 nm
- Grinding media
- 0.1-2.0 mm
- Models
- 5
Turnkey production lines
Production lines for carbon materials.
Each line page describes its process, scope and typical materials.
Other fields
Start from your industry.
Not sure which mill?
Start with your material.
Share the material, target particle size and required output. INFOR offers material trials, process planning and equipment recommendations.
Test Your Material
